Threaded steel bars, also known as threaded rods, are versatile fasteners used in construction for a variety of purposes, including structural support, formwork ties, tie rods, anchoring, soil nails, rock bolts.
Threaded bars can be provided as a product similar to reinforcing steel with directional ribbing to provide the thread, they can also have a more refined finish; Smooth bar with threaded ends – often used for anchor bolts, or a continuous rolled ISO or trapezoidal thread.

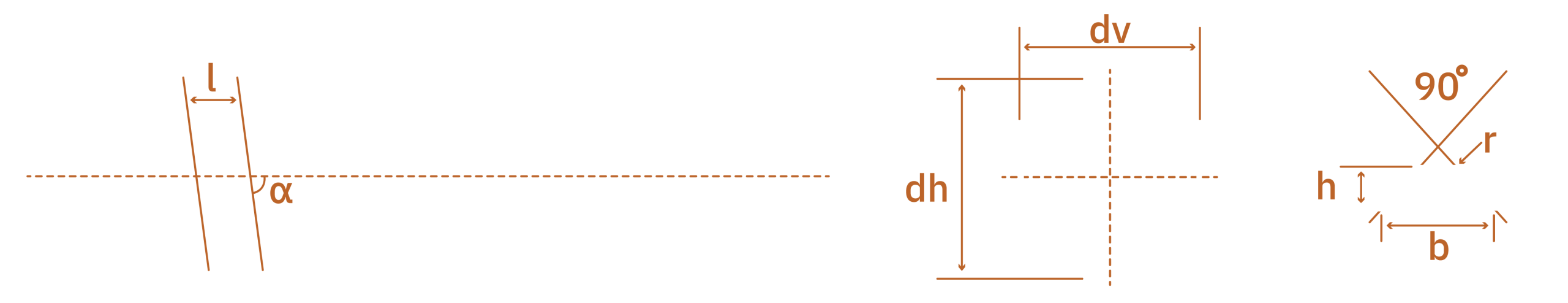

Threaded Bar Dimensions
| Dia. (mm) |
dh | dv | h | b | l | r (mm) |
α | Left Hand Thread |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | Tol. | (mm) | Tol. | (mm) | Tol. | (mm) | Tol. | (mm) | Tol. | ||||
| 15 | 14.7 | ±0.2 | 14.4 | ±0.5 | 1 | ±0.2 | 4.2 | ±0.3 | 10 | ±0.2 | 0.5 | 78.5° | |
| 20 | 20 | ±0.4 | 20 | +0.4-0.8 | 1.3 | ±0.3 | 4.8 | ±0.5 | 10 | ±0.2 | 1.2 | 80.5° | ✓ |
| 25 | 25 | ±0.4 | 25 | +0.4-0.8 | 1.6 | ±0.3 | 6 | ±0.5 | 12 | ±0.2 | 1.5 | 81° | ✓ |
| 28 | 27.3 | ±0.4 | 26.8 | +0.4-0.8 | 1.8 | ±0.3 | 6.5 | ±0.3 | 14 | ±0.3 | 2 | 81.5° | ✓ |
| 32 | 32 | ±0.5 | 32 | +0.5-1.2 | 2 | ±0.4 | 7 | ±0.5 | 16 | ±0.2 | 2 | 81.5° | ✓ |
| 36 | 36 | ±0.5 | 36 | +0.5-1.2 | 2.2 | ±0.4 | 8 | ±0.5 | 18 | ±0.3 | 2.5 | 81.5° | ✓ |
| 40 | 40 | ±0.5 | 40 | +0.5-1.2 | 2.5 | ±0.5 | 8 | ±0.5 | 20 | ±0.3 | 2.5 | 81.5° | ✓ |
| 50 | 50 | ±0.5 | 50 | +0.5-1.2 | 3 | -0.5 | 9 | ±0.5 | 24 | ±0.3 | 2.5 | 81.8° | ✓ |
| 63.5 | 63.5 | ±0.5 | 63.5 | +0.5-1.2 | 3 | ±0.6 | 12 | ±0.5 | 22 | ±0.4 | 2.5 | 84° | ✓ |
| 75 | 75 | ±0.5 | 75 | +0.4-0.8 | 3 | ±0.6 | 12 | ±0.4 | 20 | ±0.4 | 2.5 | 85° | |
Properties are representative of manufacturers data and may be subject to minor variation or change, additional order specific detail can be provided.
Threaded Bar Load Capacity
| Dia. (mm) |
Sectional Area mm² |
Weight (kg/m) |
500 Grade | 670 Grade | ||
|---|---|---|---|---|---|---|
| Yield Load (500 MPa) |
Ultimate Load (630 MPa) |
Yield Load (670 MPa) |
Ultimate Load (800 MPa) |
|||
| 15 | 177 | 1.4 | 89 | 112 | 119 | 142 |
| 20 | 314 | 2.47 | 157 | 198 | 210 | 251 |
| 25 | 491 | 4.1 | 246 | 309 | 329 | 393 |
| 28 | 616 | 5.1 | 308 | 388 | 413 | 493 |
| 32 | 804 | 6.65 | 402 | 507 | 539 | 643 |
| 36 | 1018 | 8.41 | 509 | 641 | 682 | 814 |
| 40 | 1257 | 10.34 | 629 | 792 | 842 | 1006 |
| 50 | 1963 | 16.28 | 982 | 1237 | 1315 | 1570 |
| 63.5 | 3167 | 26.5 | 1584 | 1995 | 2122 | 2534 |
| 75 | 4418 | 36.9 | 2209 | 2783 | 2960 | 3534 |
| Dia. (mm) |
Sectional Area mm² |
Weight (kg/m) |
830 Grade | 930 Grade | 1080 Grade | |||
|---|---|---|---|---|---|---|---|---|
| Yield Load (830 MPa) |
Ultimate Load (1030 MPa) |
Yield Load (930 MPa) |
Ultimate Load (1080 MPa) |
Yield Load (1080 MPa) |
Ultimate Load (1230 MPa) |
|||
| 15 | 177 | 1.4 | 147 | 182 | 165 | 191 | 191 | 218 |
| 20 | 314 | 2.47 | 261 | 323 | 292 | 339 | 339 | 386 |
| 25 | 491 | 4.1 | 408 | 506 | 457 | 530 | 530 | 604 |
| 28 | 616 | 5.1 | 511 | 643 | 573 | 665 | 665 | 758 |
| 32 | 804 | 6.65 | 667 | 828 | 704 | 868 | 868 | 989 |
| 36 | 1018 | 8.41 | 845 | 1049 | 947 | 1099 | 1099 | 1252 |
| 40 | 1257 | 10.34 | 1043 | 1295 | 1169 | 1358 | 1358 | 1546 |
| 50 | 1963 | 16.28 | 1629 | 2022 | 1862 | 2120 | 2120 | 2414 |
| 63.5 | 3167 | 26.5 | 2629 | 3262 | 2945 | 3420 | 3420 | 3895 |
| 75 | 4418 | 36.9 | 3667 | 4551 | 4109 | 4771 | 4471 | 5434 |
Properties are representative of manufacturers data and may be subject to minor variation or change, additional order specific detail can be provided.
Components + Other Products

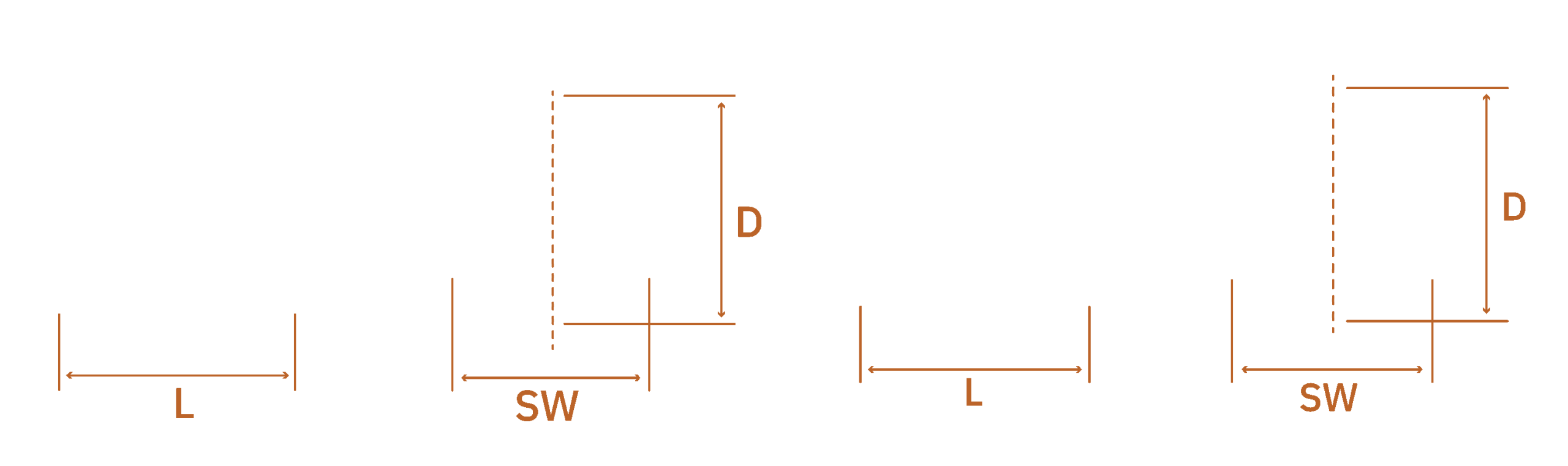

STANDARD FLAT + SPHERICAL HEX NUT
| Diameter | SW (mm) | L (mm) | D (mm) | Weight (kg) | Spherical Nut Option |
|---|---|---|---|---|---|
| 15 | 30 | 50 | 34.5 | 0.22 | |
| 15 | 30 | 100 | 34.5 | 0.45 | |
| 20 | 32 | 45 | 37 | 0.17 | |
| 20 | 36 | 60 | 69 | 0.36 | |
| 25 | 50 | 60 | 55 | 0.7 | ✓ |
| 28 | 50 | 60 | 55 | 0.7 | ✓ |
| 32 | 65 | 72 | 75 | 1.4 | ✓ |
| 36 | 65 | 80 | 75 | 1.45 | ✓ |
| 40 | 70 | 100 | 81 | 2.12 | ✓ |
| 50 | 80 | 110 | 92 | 3.1 | ✓ |
| 63.5 | 100 | 115 | 130.2 | 4.72 | ✓ |
| 75 | 115 | 160 | 132.2 | 8.84 | ✓ |

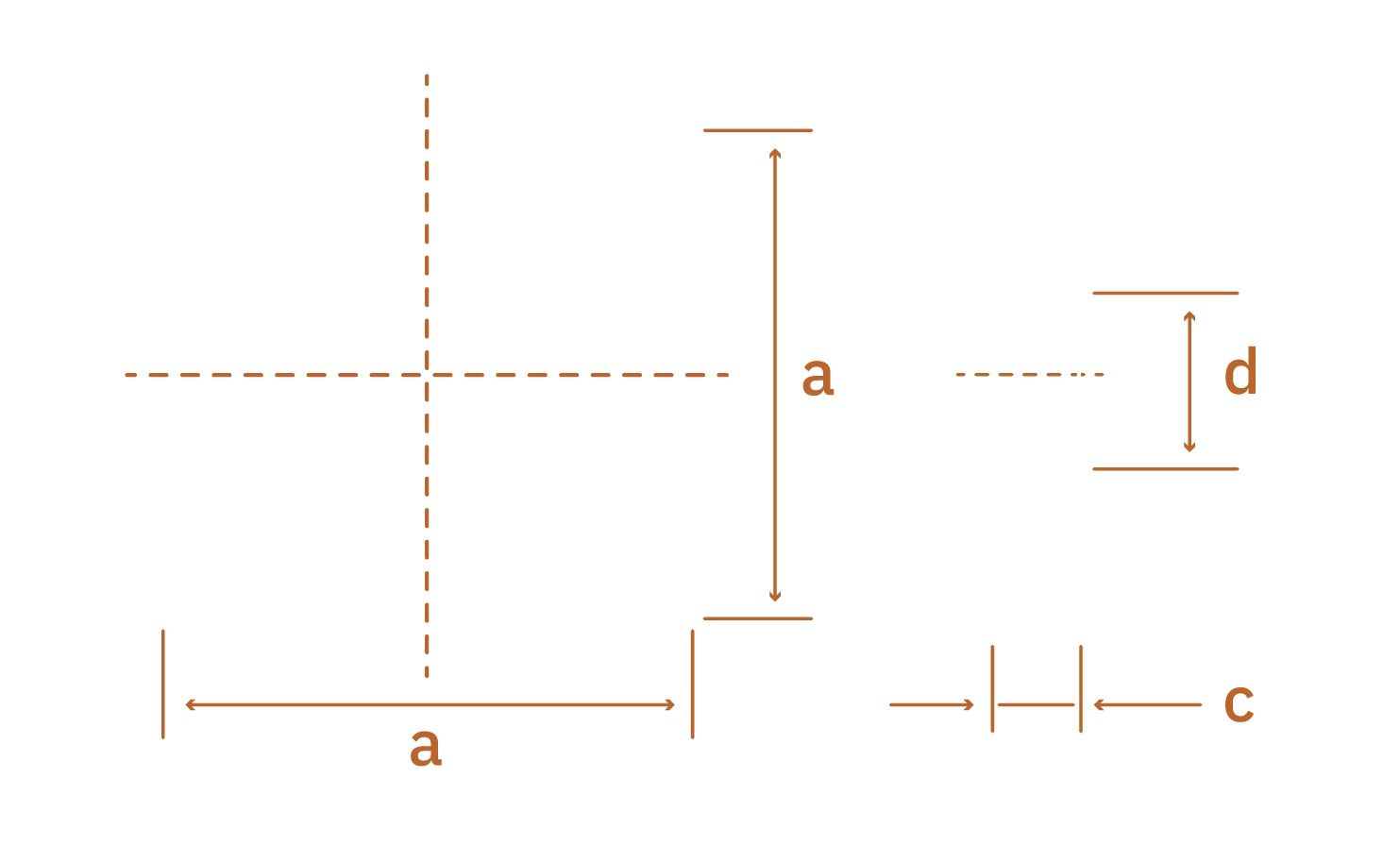

STANDARD ANCHOR PLATES
| Dia. | a (mm) |
c (mm) |
Weight (kg) |
Spherical Plate Option |
|---|---|---|---|---|
| 15 | 100 | 8 | 0.6 | |
| 20 | 100 | 30 | 2.2 | |
| 25 | 150 | 35 | 5.9 | ✓ |
| 32 | 180 | 40 | 9.6 | ✓ |
| 36 | 200 | 45 | 13.4 | ✓ |
| 40 | 220 | 50 | 18 | ✓ |
| 50 | 240 | 55 | 33.6 | ✓ |
| 63.5 | 325 | 70 | 56.3 | ✓ |
OTHER COMPONENTS
- Lock Nuts and special purpose nuts
- Domed Nuts and Domed Bearing plates
- Couplers and turnbuckles for joining and adjusting bar lengths.
- Spacers and Centralisers for rock bolts, soil nails etc
- Formwork accessories for hot rolled formwork tie rods using 15mm and 20 mm diameter bar.
- Stainless steel bar and threaded bar – including Duplex Stainless steel grades.
