SYNTHETIC SHEET PILES
SYNTHETIC SHEET PILES
Vinyl sheet piling is made from rigid PVC enhanced with impact modifiers and stabilisers for UV, thermal and corrosion resistance. They are manufactured to ASTM D8427-21 standard and USACE EM 1110-2-2502 requirements.
FRP sheet piling, known as fibre reinforced plastic or fibre reinforced polymer sheet piles are a composite of reinforcing fibres and polymer resin, they can be also referred to as fibre glass sheet piles.
Vinyl Pile Profiles
PROFILE

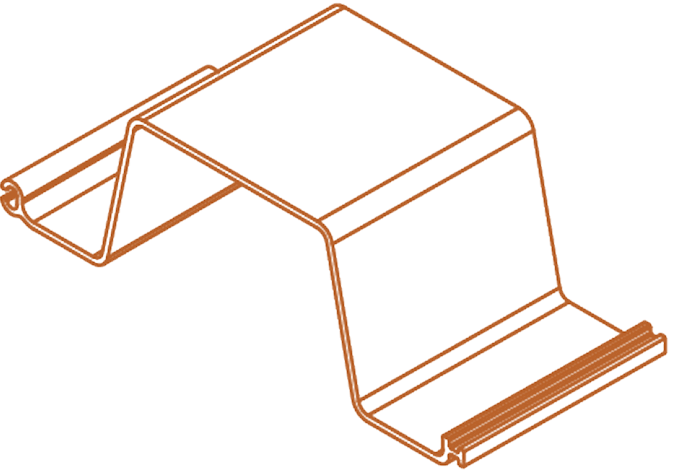

BOX PILE
PROFILE

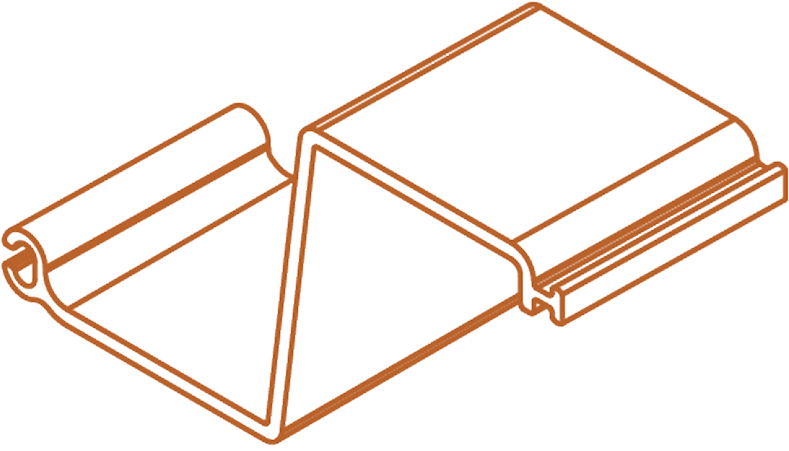

Z PILE
PROFILE

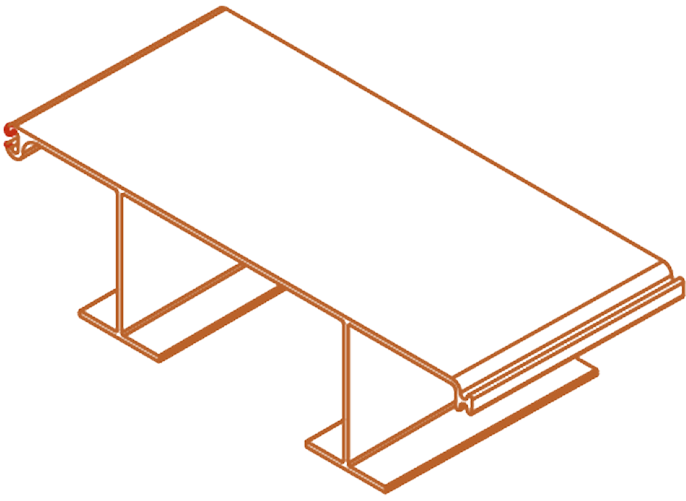

FLAT PANEL
| SECTION | Width (mm) |
Height (mm) |
Thickness (mm) |
Moment of Inertia (cm⁴/m) |
Section Modulus (cm³/m) |
Allowable Moment (kNm/m) |
Stiffness EI (kNm²/m) |
Shape |
|---|---|---|---|---|---|---|---|---|
| SG-950 | 457 | 305 | 18.1 | 46567 | 3054 | 67.37 | 1224 | Z |
| SG-825 | 762 | 305 | 12.3 | 30043 | 1973 | 43.53 | 791 | Box |
| SG-850 | 457 | 254 | 13.1 | 25400 | 2000 | 44.12 | 668 | Z |
| SG-750 | 457 | 254 | 12.2 | 21700 | 1710 | 37.71 | 564 | Z |
| SG-625 | 762 | 254 | 9.8 | 16660 | 1312 | 28.94 | 433 | Z |
| CL-9900 | 610 | 229 | 8.9 | 12290 | 1075 | 23.72 | 320 | Box |
| CL-9000 | 610 | 229 | 7.1 | 9969 | 871 | 19.22 | 264 | Box |
| SG-425 | 610 | 203 | 7.2 | 7784 | 769 | 16.96 | 207 | Z |
| FP-475 | 610 | 178 | 6.1/6.4 | 6145 | 1102 | 24.32 | 160 | Flat Panel |
| SG-325 | 610 | 178 | 6.4 | 5326 | 597 | 13.17 | 141 | Z |
| SG-225 | 547 | 127 | 5.7 | 2458 | 387 | 8.54 | 64 | Z |
Section properties are representitive of manufacturers data and may be subject to minor variation or change, additional order specific detail can be provided.
If you have a specified section that does not appear in this list please contact us, we will be able to provide that section or a suitable alternative for you
FRP Piles
PROFILE
BOX PILE
PROFILE
Z PILE
| SECTION | Width (mm) |
Height (mm) |
Thickness Web/Flange (mm) |
Moment of Inertia (cm⁴/m) |
Section Modulus (cm³/m) |
Allowable Moment (kNm/m) |
Stiffness EI (kNm²/m) |
Shape |
|---|---|---|---|---|---|---|---|---|
| UC-95 | 762 | 432 | 13.7 | 67870 | 3145 | 216.84 | 18717 | Z |
| UC-75 | 610 | 356 | 10.2/10.9 | 36325 | 2043 | 140.85 | 10018 | Z |
| UC-50 | 914 | 254 | 8.3/9.0 | 14200 | 1118 | 77.10 | 3917 | Box |
| UC-30 | 457 | 203 | 6.4/6.7 | 7101 | 698 | 48.19 | 1958 | Z |
Section properties are representitive of manufacturers data and may be subject to minor variation or change, additional order specific detail can be provided.
If you have a specified section that does not appear in this list please contact us, we will be able to provide that section or a suitable alternative for you.
